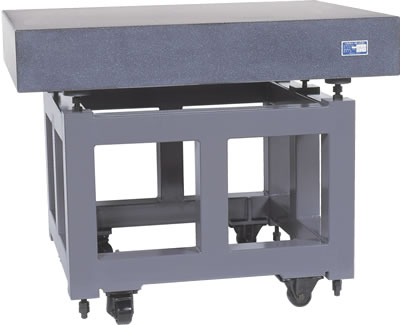

Surface Plate Stand with caster (Granite , Cast Iron Precision For Surface Plate)
[ Stock No：218-1 ]
- With caster for easy movement.
- Made using Square pipe material with emphasis on stability and eas of use.
- It is designed so that the Surface Plate high accuracy will be maintained for a long term
- Height from Surface Plate Upper surface to the floow is 750mm. However, we can make with other measurements according to your requirement.
*We can manufacture special dimension products, products with fall prevention mechanism or with special mounts.
Stand for Granite Surface Plate with Caster
| Surface Plate Measurement (mm) |
Code No. | Square Pipe (mm) |
No. of Support Legs (pcs) |
Adjustment Screw (mm) |
Surface Plate Upper Surface Height (mm) |
Mass (kg) |
|---|---|---|---|---|---|---|
| 750×500 | BL203 | 75×75 | 5 | M16 | 850 | 65 |
| 1000×750 | BL204 | 80 | ||||
| 1000×1000 | BL205 | 95 | ||||
| 1500×1000 | BL206 | 80×80 | 105 | |||
| 2000×1000 | BL207 | 7 | M20 | 125 | ||
| 2000×1500 | BL208 | 145 | ||||
| 3000×1500 | BL209 | 9 | 155 |
Stand for Cast Iron Precision Surface Plate with Caster
| Surface PlateMeasurement (mm) |
Code No. | Square Pipe (mm) |
No. of Support Legs (pcs) |
Adjustment Screw (mm) |
Surface Plate Upper Surface Height (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|
| 750×500 | BL403 | 75×75 | 5 | M16 | 850 | 65 |
| 1000×750 | BL404 | 80 | ||||
| 1000×1000 | BL405 | 95 | ||||
| 1500×1000 | BL406 | 80×80 | 105 | |||
| 2000×1000 | BL407 | 7 | 125 | |||
| 2000×1500 | BL408 | 145 | ||||
| 3000×1500 | BL409 | 185 |
