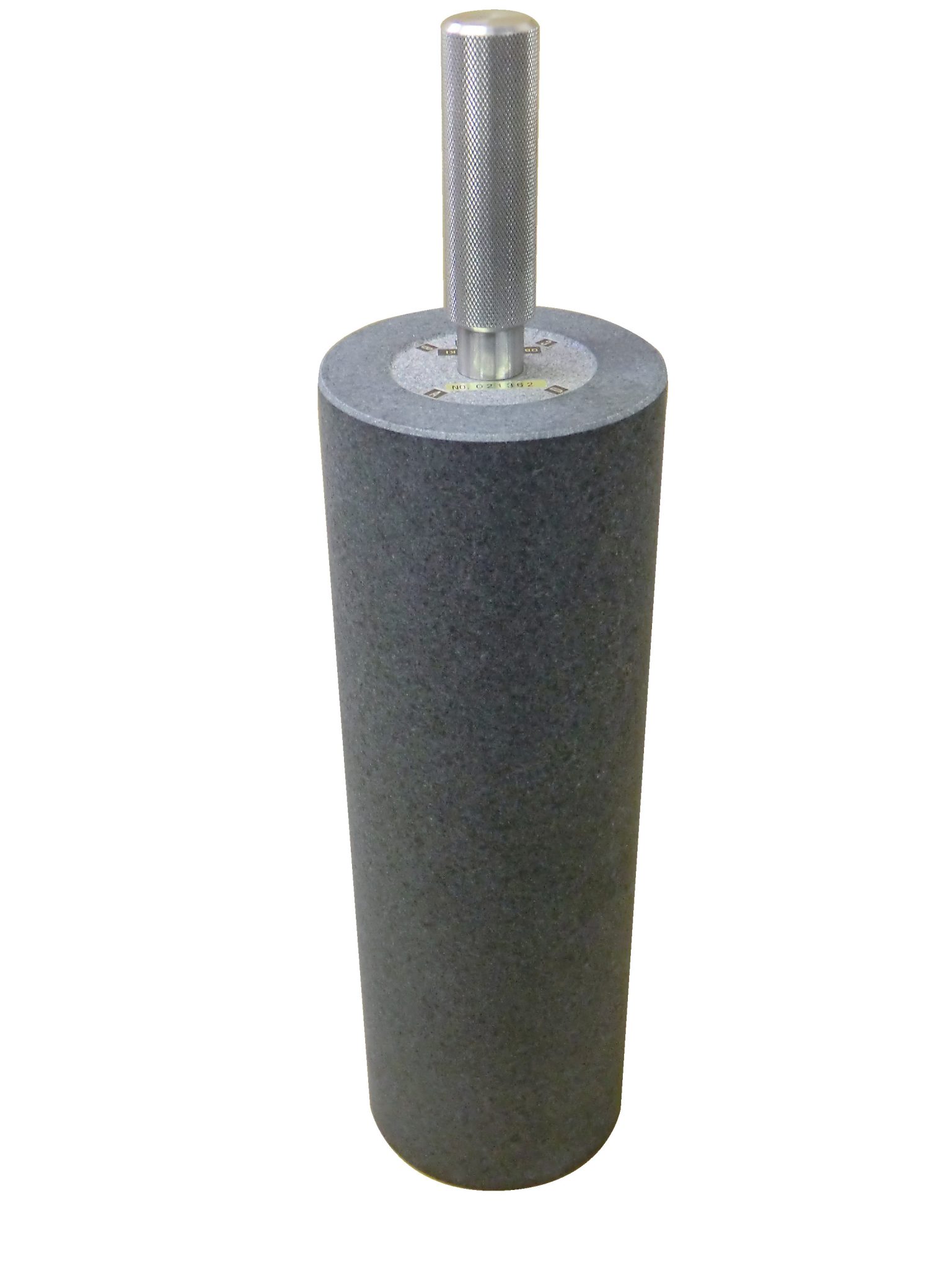

Granite Cylindrical Square
[ Stock No:900-7 ]
- We use black gabbro granite for the material.
- Maintains high accuracy as a master for squareness measurement.
- Use for measurement of perpendicularity of parts attached using jigs, products squareness, etc
- Because the contact surface with work piece is a 1 line cylindrical surface, accurate Measurement can be performed.
*300mm and above is handle attached.
Code No. | Nominal Measurement | Measurement (H×φmm) |
Squareness (μm) |
Mass (kg) |
---|---|---|---|---|
FP101 | 200 | 200×80 | 3.0 | 3.5 |
FP102 | 300 | 300×100 | 3.5 | 7.5 |
FP103 | 500 | 500×130 | 4.5 | 20.5 |
FP104 | 600 | 600×160 | 5.0 | 37 |
